Mobile slewing jib crane
Type MOB-US
Tip Several transport options are available as accessories for quick and easy repositioning.
Product highlights
- Thanks to the counter weight integrated in the crane base, the crane is completely independent. Neither any fastening to the foundation nor any dowelling of the crane on the concrete floor is required.
- Versatile transport possibilities: Crane trolley, fork lift, or overhead crane (all optional)
- Aluminium profile jib
- Ergonomic handling
- Easy slewing
- Smooth-running trolley
- Overbraced design, low dead weight of aluminium profile jib arm
- Trailing cable system travelling inside the aluminium profile
- Column height and jib arm length can be adjusted to conditions on the spot
The easy-running one in mobile design

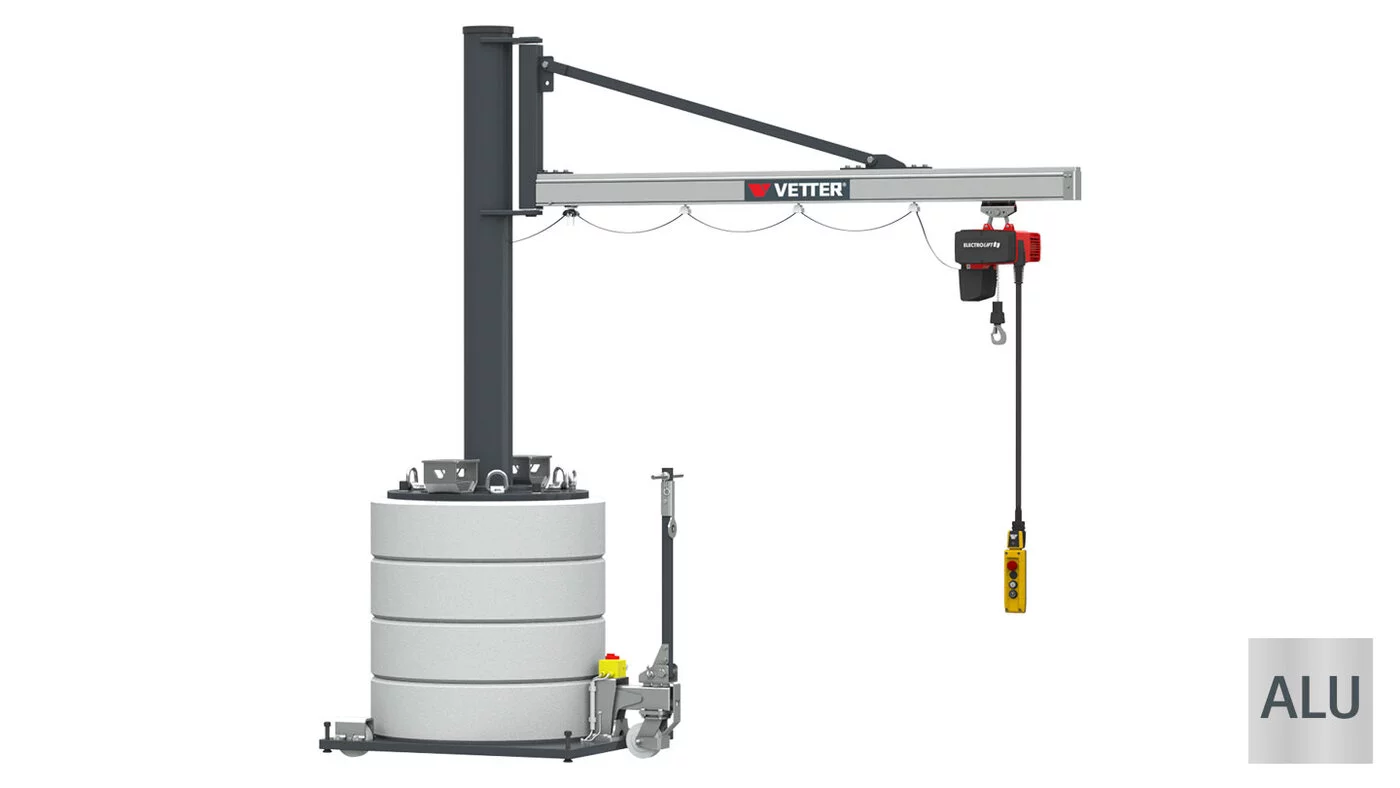

MOB-US is the easy-running mobile slewing jib crane with aluminium profile jib arm.
You can use it for easy, quick, and safe handling of small loads up to 500 kg; e.g. in logistics or automotive industry. Its overbraced design and lightweight aluminium jib arm enable especially easy slewing of the crane. Thanks to the good running qualities of the internal push trolley, the chain hoist moves quite easily. The mobile crane MOB-US UNILIFT perfectly meets your requirements since the column height can be adjusted individually.
Thanks to the counter weight integrated in the crane base, MOB-US is completely independent. Neither any fastening to the foundation nor any dowelling of the crane on the concrete floor is required.
We offer easy-running push trolleys, ELECTROLIFT® chain hoists, slewing limit stops, and locking devices.
This crane type is also available in column- and wall-mounted design.

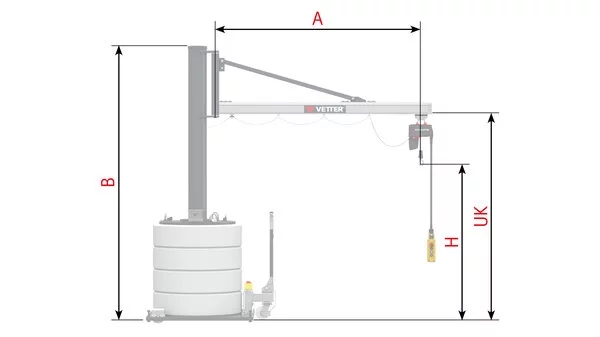

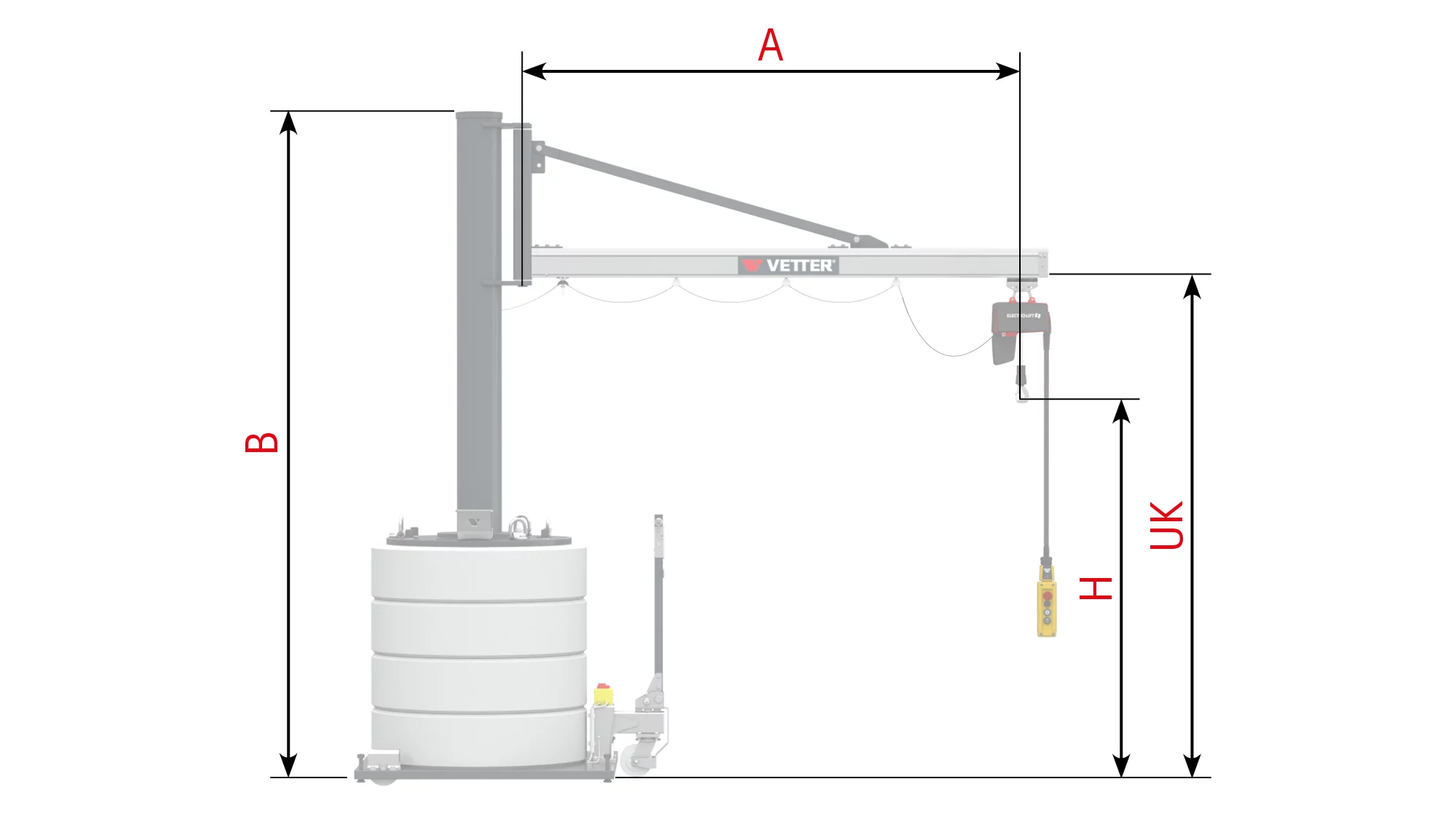

Technical data
Capacity range
Capacity: | 80 - 500 kg |
Outreach: | 1900 - 5900 mm |
Jib clearance: | 1800 - 5000 mm |
Total height: | 2600 - 5750 mm |
Slewing range: | 270° |
EN 13001 Hoisting class: | HC2 |
EN 13001 Stability class: | S2 |
Jib design: | Overbraced |
Slewing: | By hand |
Hoist: | Chain hoist / Pulley block |
Trolley drive: | By hand |
Installation location: | Indoor |
Outreach [m]
Capacity [kg]
1.9 | 2.4 | 2.9 | 3.4 | 3.9 | 4.4 | 4.9 | 5.4 | 5.9 | |
---|---|---|---|---|---|---|---|---|---|
80 | |||||||||
125 | |||||||||
250 | |||||||||
320 | |||||||||
500 |
- ■ Crane base either 1175×1040 mm or 1360×1240 mm □ Crane base 1360×1240 mm
3D view


















































Accessories
Power lead

Inside trailing cable power supply
Trailing cable power supply with cable sliders inside the profile incl. end clamp.
Other

Slewing limitation
Mechanical slewing limitation, can be installed and adjusted easily and continuously.

Locking device
For locking the jib arm in several positions. Applied by lever arm / traction rope (depending on crane
type) with control lever. Also to be used as immobilizer system up to wind force 7 Beaufort (only when crane is switched off and hoist is in idle position).
Surface finish

Paint system for indoor use
Cranes intended to be used in a hall are steel grit blasted and provided with a high-quality coating on the basis of corrosion category C2. It is suitable for minor atmospheric stress. The standard colour is daffodil yellow (RAL 7016) with a nominal layer thickness of 80 µm.
Concrete elements without coating.
Other RAL shades, corrosion categories, and layer thicknesses are available as an option.
Transport

Crane trolley
The crane trolley with drawbar enables manual traversing.

Coupling
By retrofitting the coupling, Mobilus can be pulled by a forklift truck.

Fork lift pockets
Galvanised fork lift pockets are provided for lifting and displacing by means of a forklift truck.

Lifting lugs
Using the lifting lugs, an overhead crane can move Mobilus safely to its new place of use.
