Monorail gantry crane
P200

Capacity:  500 - 2000 kg

Outreach:  1000 - 2000 mm

Field length:  2000 - 10 000 mm

Tip Variable overall length by combination of several fields.

Product highlights

  • Point-to-point load transport
  • Variable maximum crane rail length by combination of several fields
  • Compact design, perfectly suited for small rooms
  • Large effective lifting height
  • Support height and crane rail length can be adjusted to conditions on the spot
  • Outdoor use possible
  • Easy to install thanks to dowelling on concrete floor (optional)

The monorail gantry crane with variable length

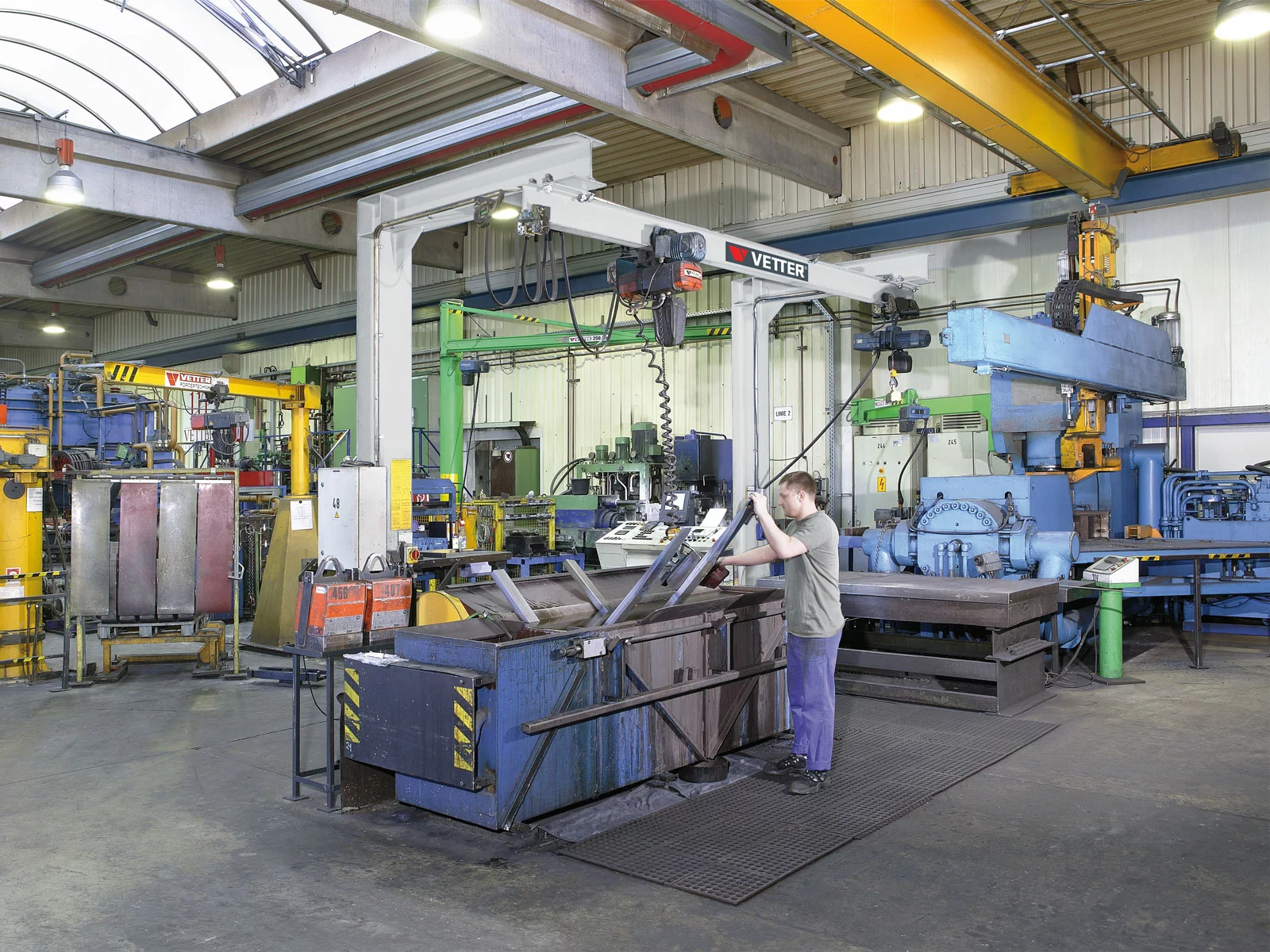

The monorail gantry crane P200 is the perfect choice when it is about transporting a load along a specified line over long distances.

Using the P200, you are able to lift maximum loads of 2,000 kg effortlessly and over long distances (even curves), e.g. for transport between two hall bays or linking of machines / workstations.
The crane rail can be fitted with one or several electric chain hoists ELECTROLIFT® so as to enable independent work at several workstations but also feeding of subsequent workstations.

Due to its compact design, the P200 is ideally suited for subsequent installation in small and narrow operating rooms. The gantry crane P200 perfectly meets your requirements for indoor and outdoor use since its support height and crane rail length can be adjusted individually and it can be extended by combination of several fields.

Regarding fastening options, you can make your individual choice from comfortable dowelling on concrete floor or fastening on foundation using anchors.
Moreover, we offer a suitable power supply, electric chain hoists ELECTROLIFT® with electric trolley, radio remote control, sophisticated control systems up to automatic crane operation as well as various other accessories.

Technical data

Capacity: 500 - 2000 kg
Outreach: 1000 - 2000 mm
Field length: 2000 - 10 000 mm
Jib clearance: 2500 - 5000 mm
Total height: 3000 - 5450 mm
EN 15011 Hoisting class: HC2
EN 15011 Stability class: S2
Hoist: Chain hoist
Trolley drive: By hand / Electrical
Installation location: Indoor / Outdoor
Max. crane rail length: Can be extended to any length

Field length [m]

Capacity [kg]

2 3 4 5 6 7 8 9 10
500
800
1000
1600
2000

3D-Ansicht

Image Image
Image Image Image Image Image Image Image Image Image Image Image Image Image Image Image Image Image Image Image Image Image Image Image Image Image Image Image Image Image Image Image Image Image Image Image Image

Gallery

Request a quote

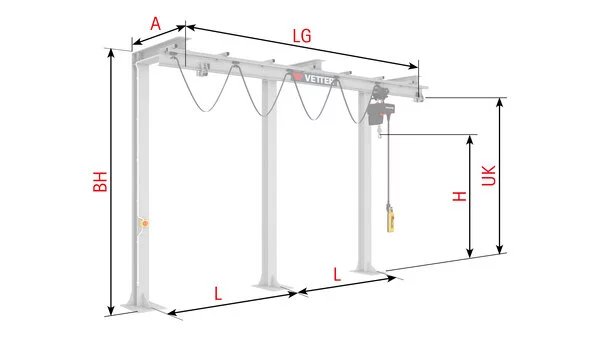

Technical data
kg
A
mm
L
mm
LG
mm
UK
mm
BH
mm
H
mm
mm
