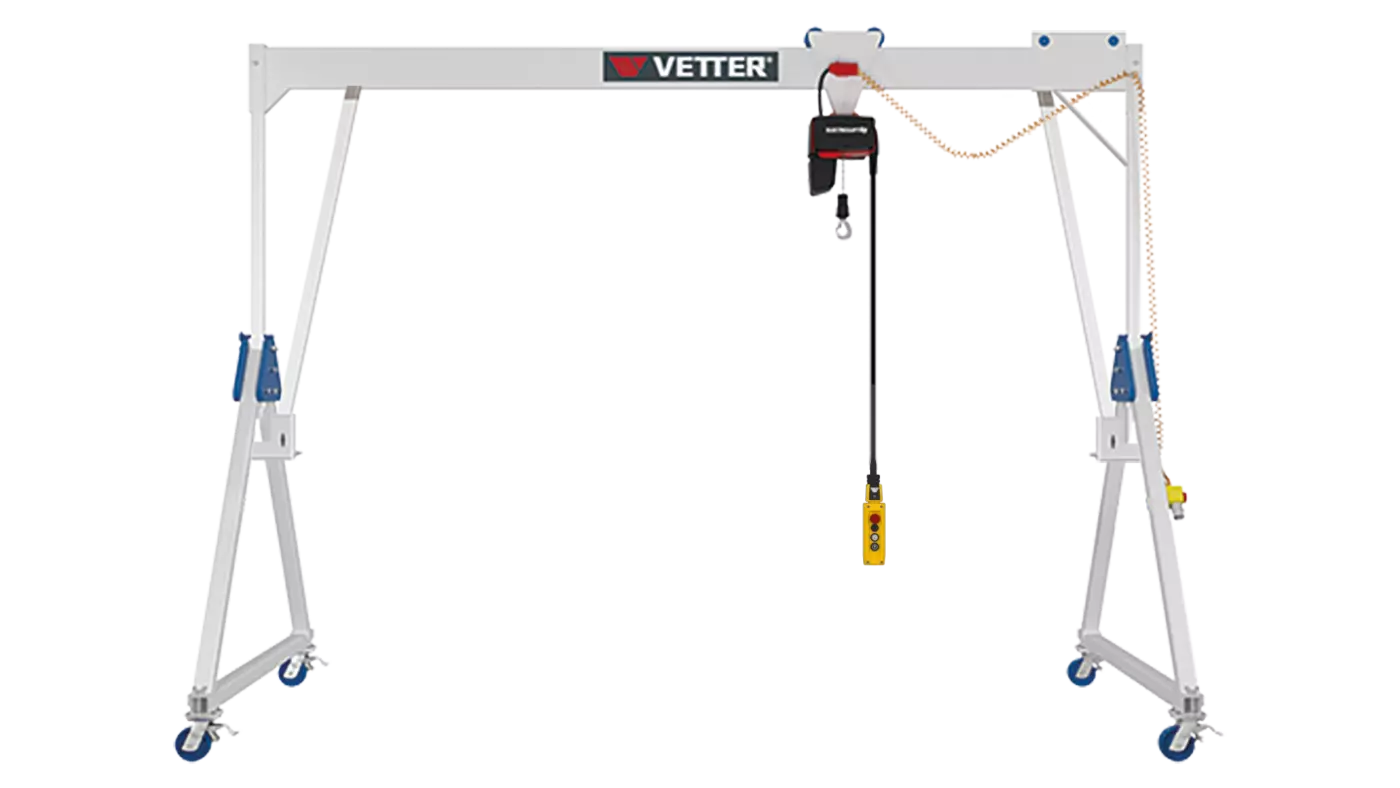

Movable gantry crane made of aluminium
ALU-PK

Capacity:  500 - 1500 kg

Clear width:  3000 - 4000 mm

Tip Horizontal adjuster for continuous adjustment of the usable runway length.

Product highlights

  • Low dead weight thanks to aluminium structure
  • Easy travelling on level floor
  • Folding side frames simplify handling
  • No stabilising bars necessery, therefore maximal hoist travel distance
  • Lockable push trolley
  • Height adjustable in two size variants: M (standard) and L
  • Easy snap-on assembly – not requiring any drilling nor tools

The flexible one

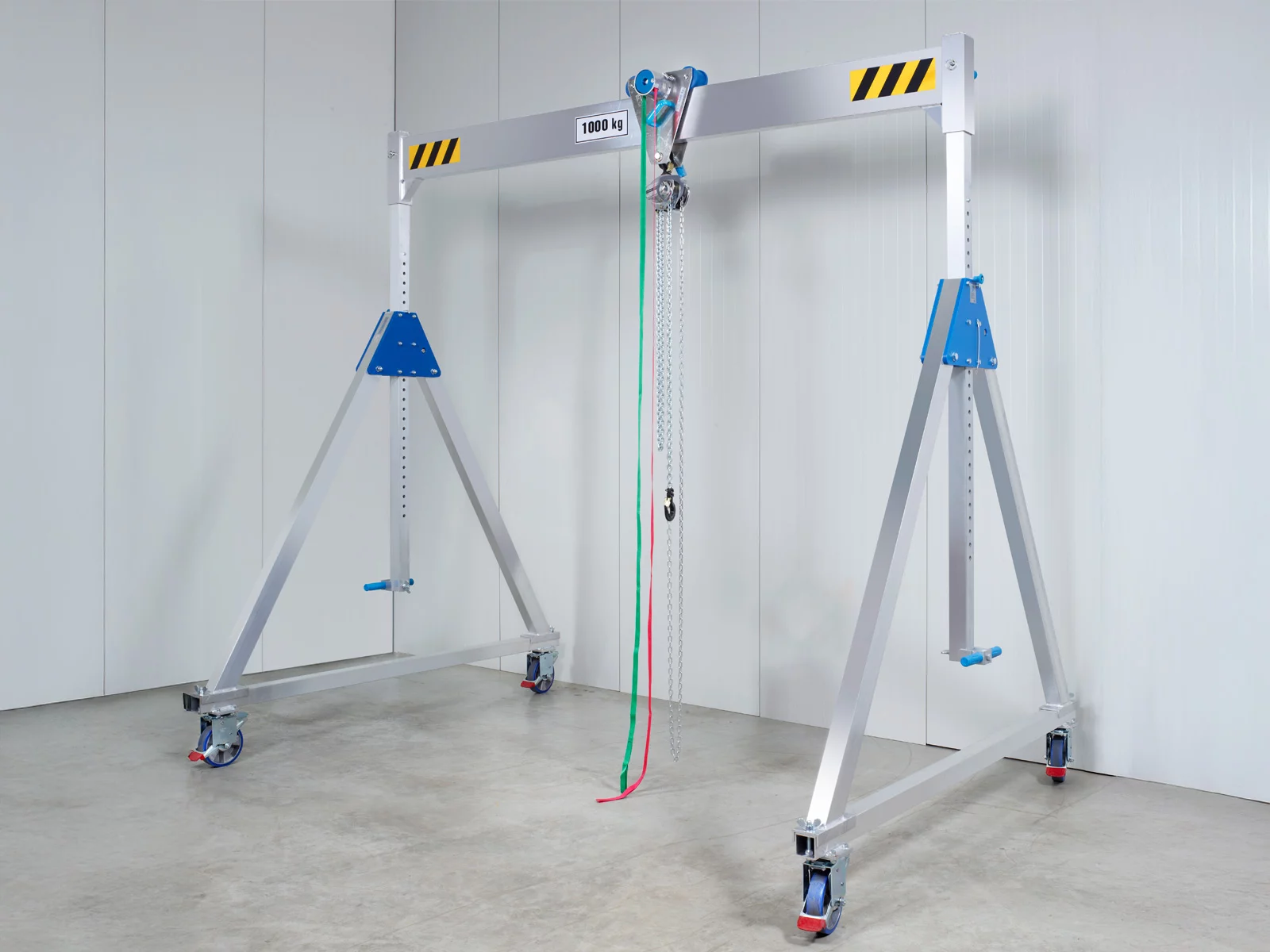

The movable gantry crane ALU-PK can be operated in alternating places where quick and easy crane installation and disassembly are required.

Using the ALU-PK, you are able to lift and transport loads of 1,500 kg effortlessly. The integrated brake blocks the push trolley in any position. Thanks to its standard height adjustment feature, the movable aluminium gantry crane perfectly meets your requirements.

Neither drilling nor tools are required for installation; all joints are in snap-on design. As this mobile workshop crane can be disassembled quickly and easily, it is ideally suited for assembly operations – either indoor or outdoor. Thanks to its folding side frames and an individual component weight not exceeding 30 kg, the aluminium crane is mobile and can be moved easily by a single person.

The scope of delivery includes a manual push trolley for mounting the hoist. The integrated locking brake ensures that the trolley remains reliably in place at all times, for maximum safety and comfort during operation.

Moreover, we offer a suitable power supply via spiral cable, chain hoists ELECTROLIFT®, manual operated pulleys as well as various other accessories.

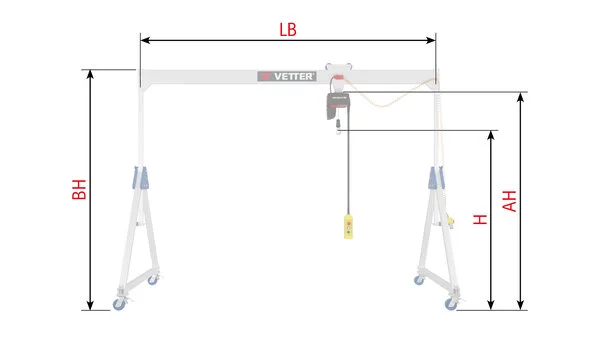

Technical data

Capacity range

Capacity: 500 - 1500 kg
Clear width: 3000 - 4000 mm
Total height: 2550 - 3400 mm
Suspension height: 2170 - 3020 mm
EN 15011 Hoisting class: HC2
EN 15011 Stability class: S1
Hoist: Chain hoist / Pulley block
Trolley drive: By hand
Installation location: Indoor / Outdoor

Gantry span [m]

Capacity [kg]

3 4
500
1000
1500

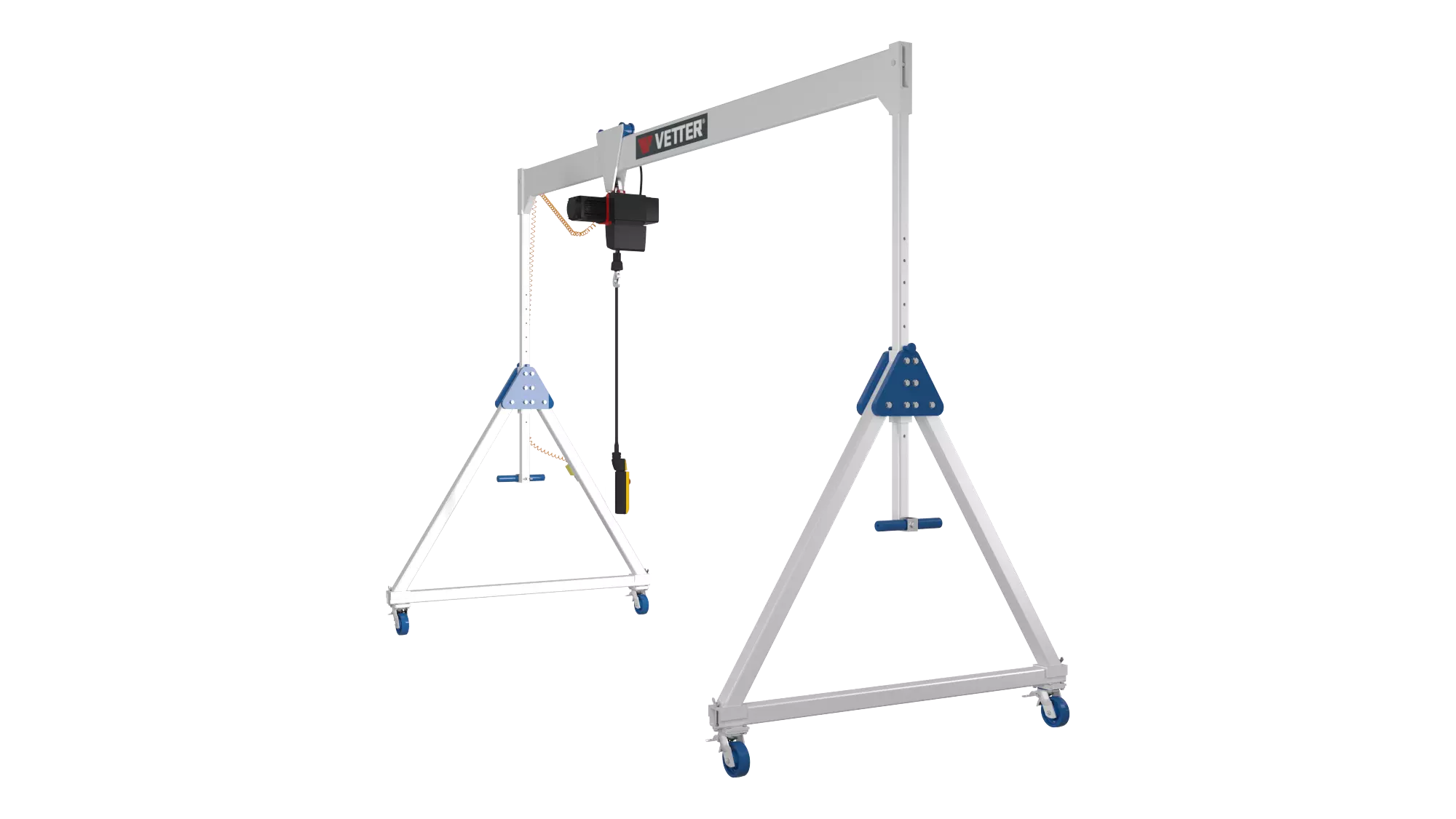

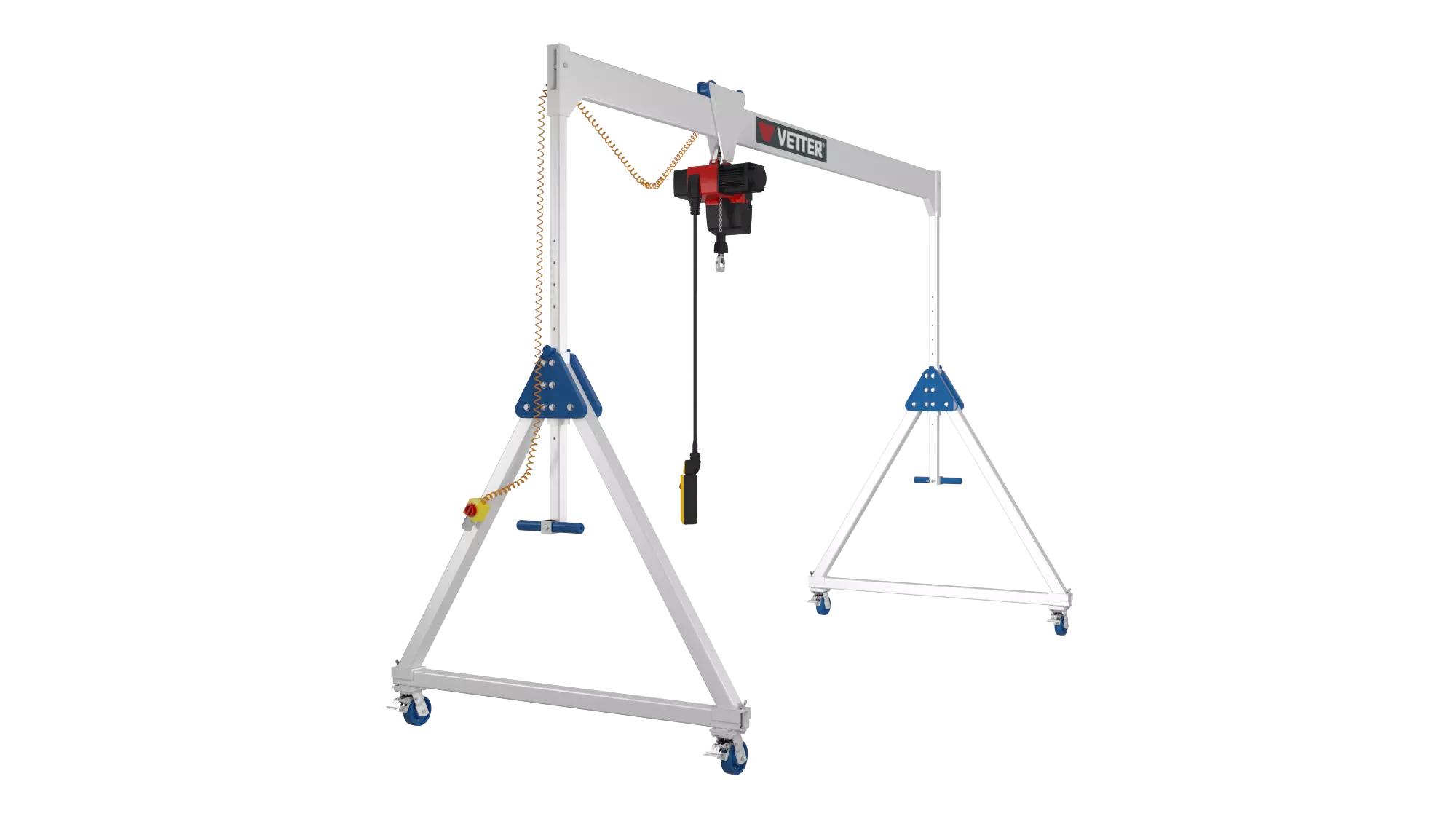

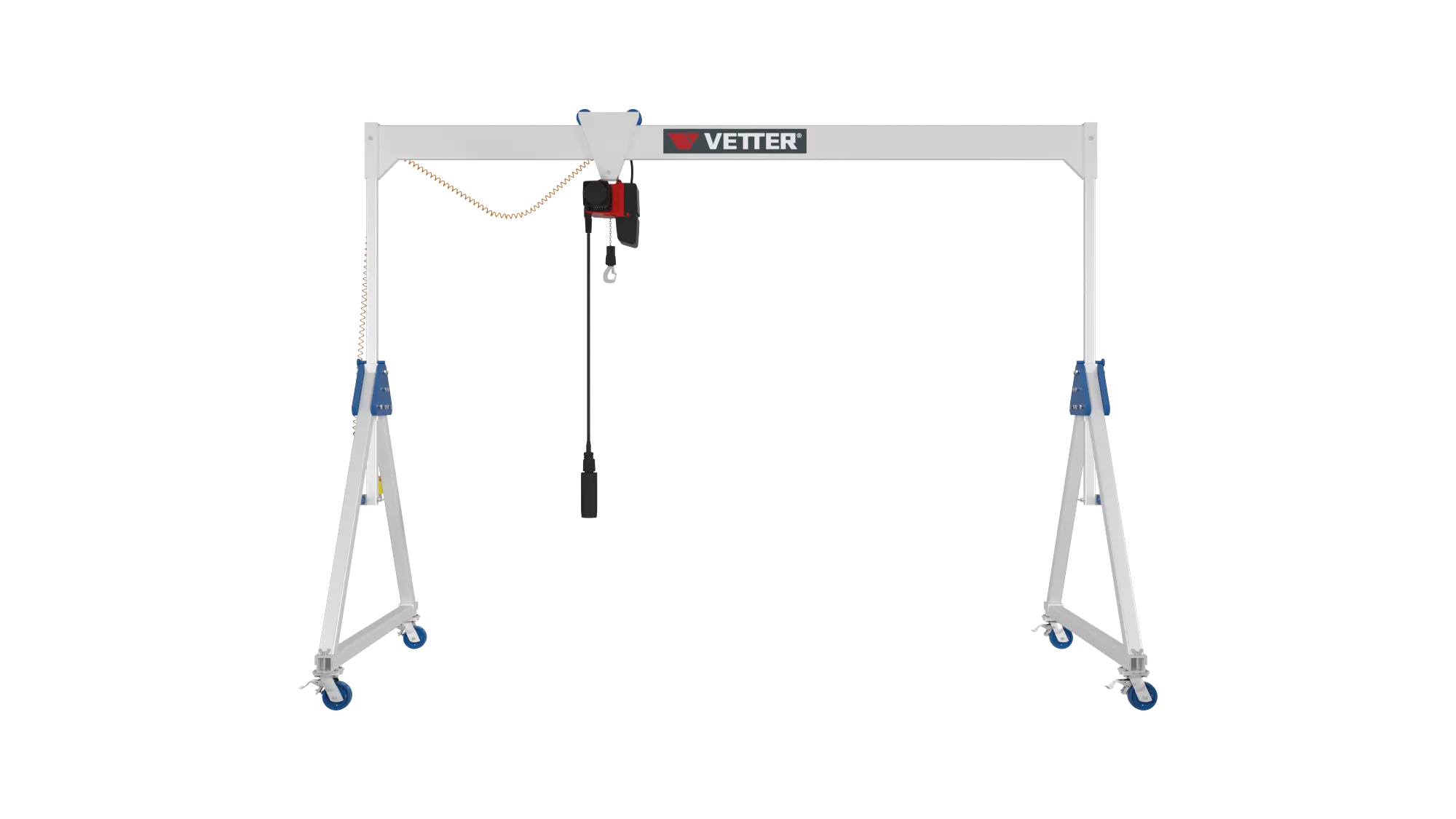

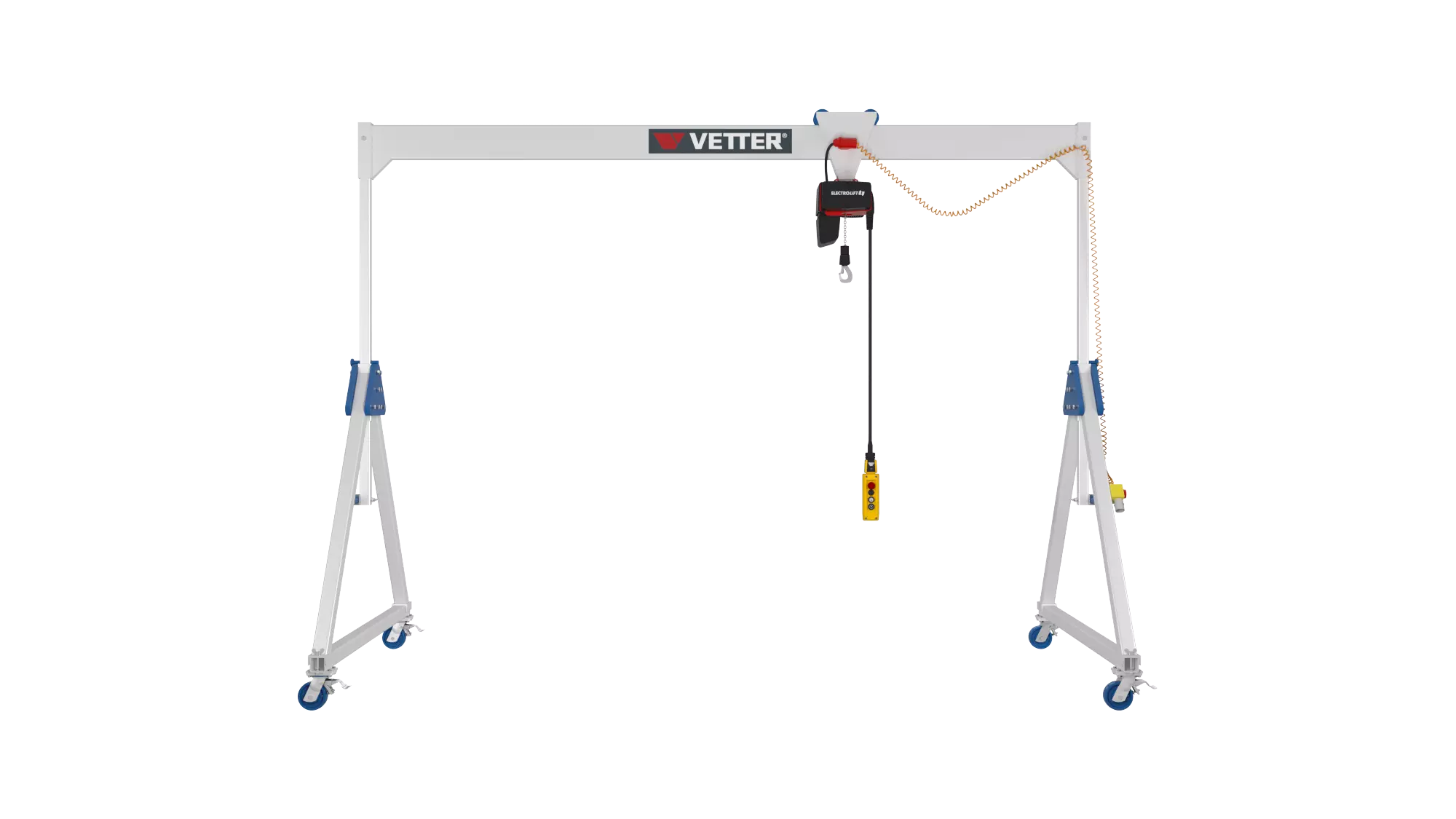

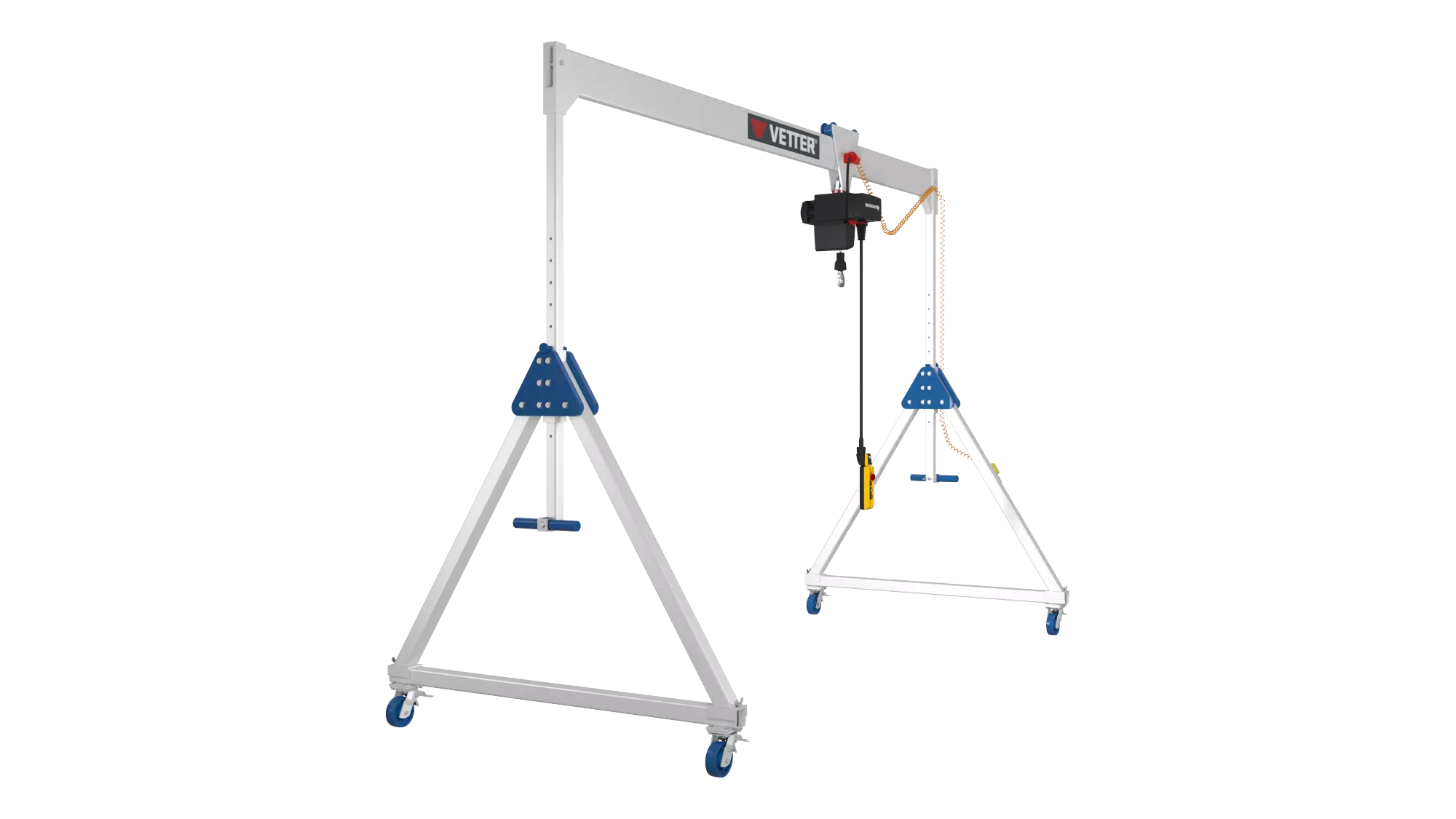

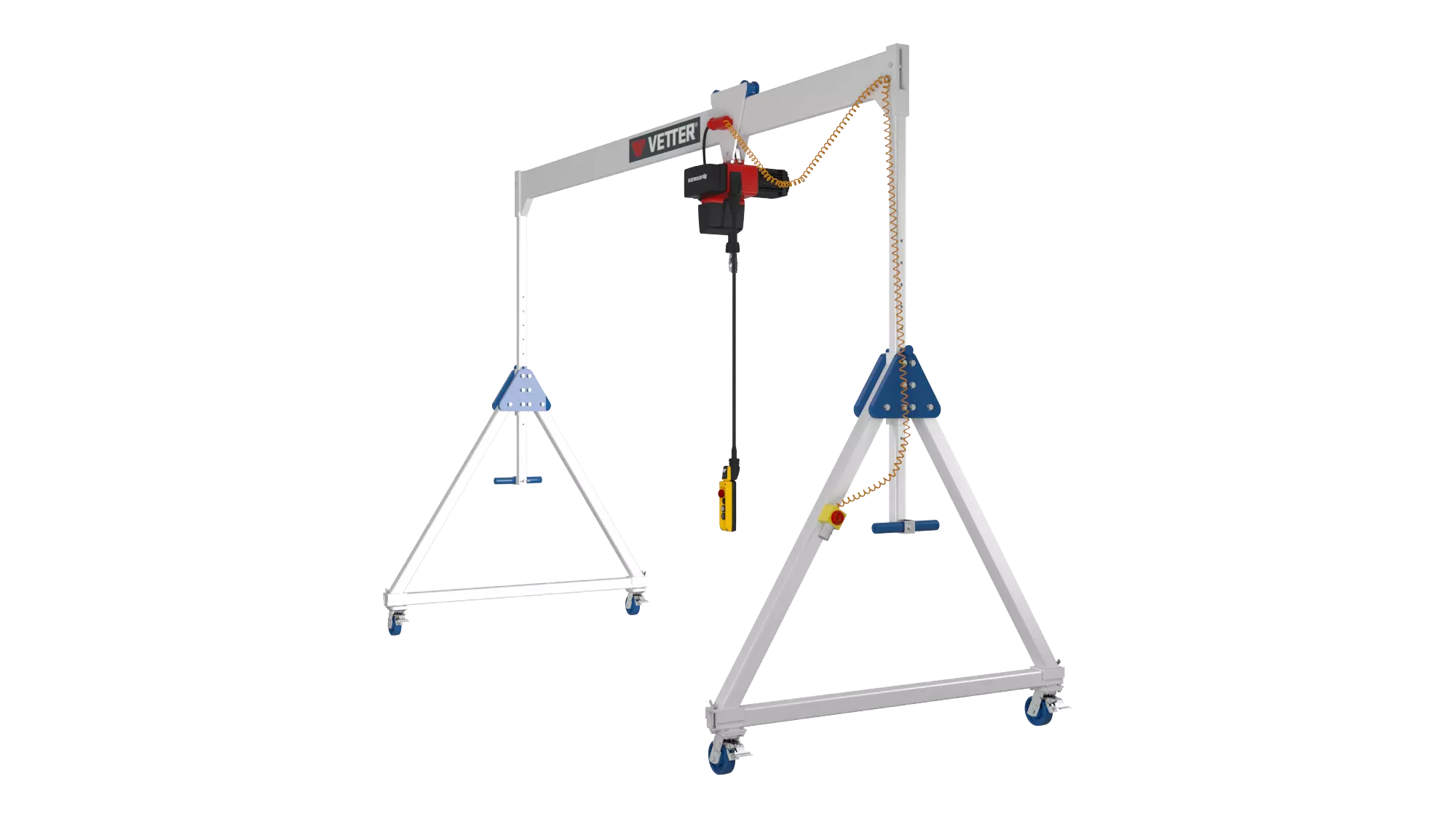

3D view

Image Image
Image Image Image Image Image Image

4 fixed castors with wheel locks

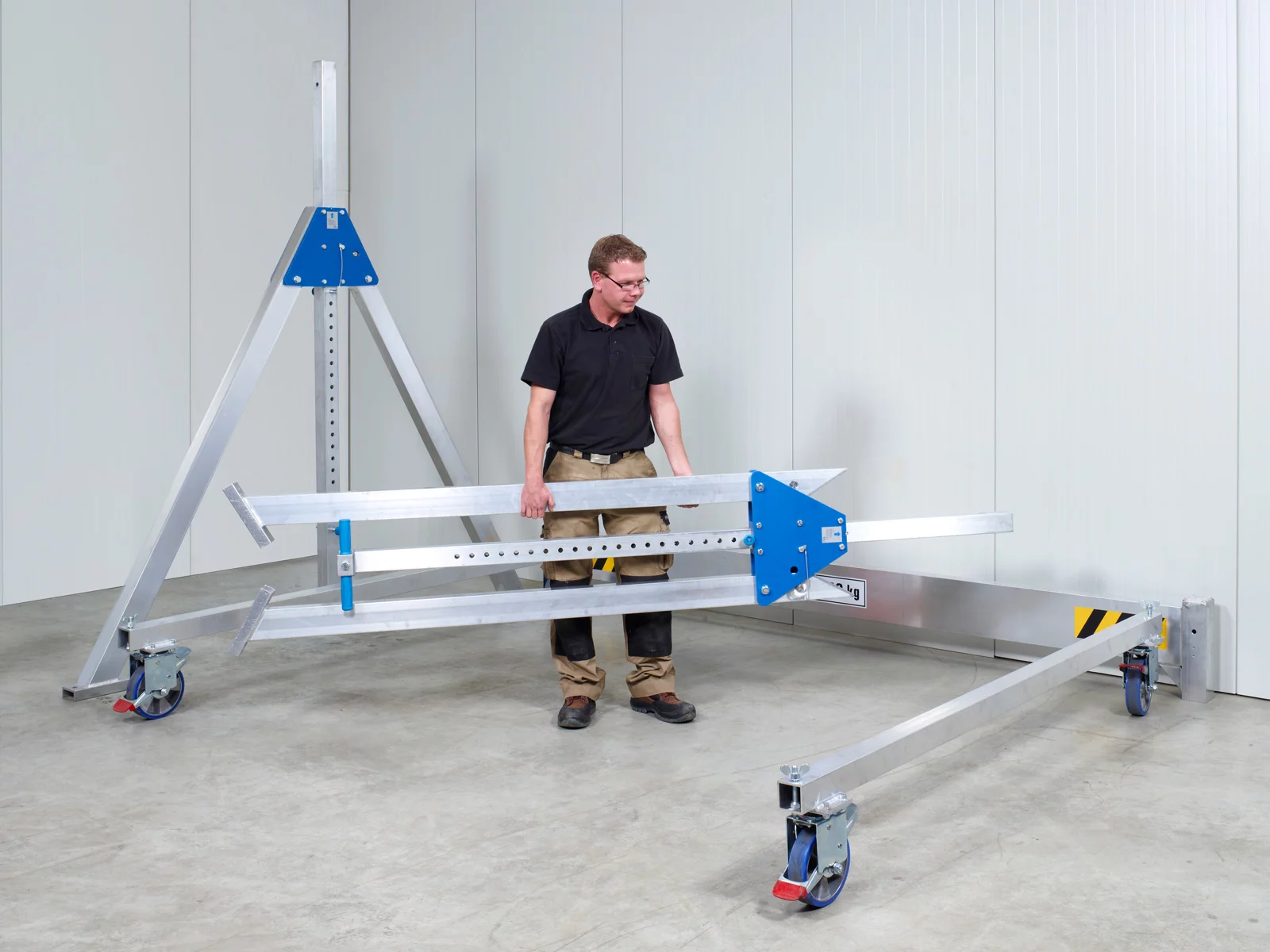

Foldable side frames for even easier handling

Height adjustable

ELECTROLIFT® electric chain hoist or manually operated pulley block

Manual push trolley with locking brake

Lockable mains connection switch with CEE coupling and spiral cable power supply

Easy plug-in assembly – no drilling, no tools required

Aluminum profile construction

Accessories

Other

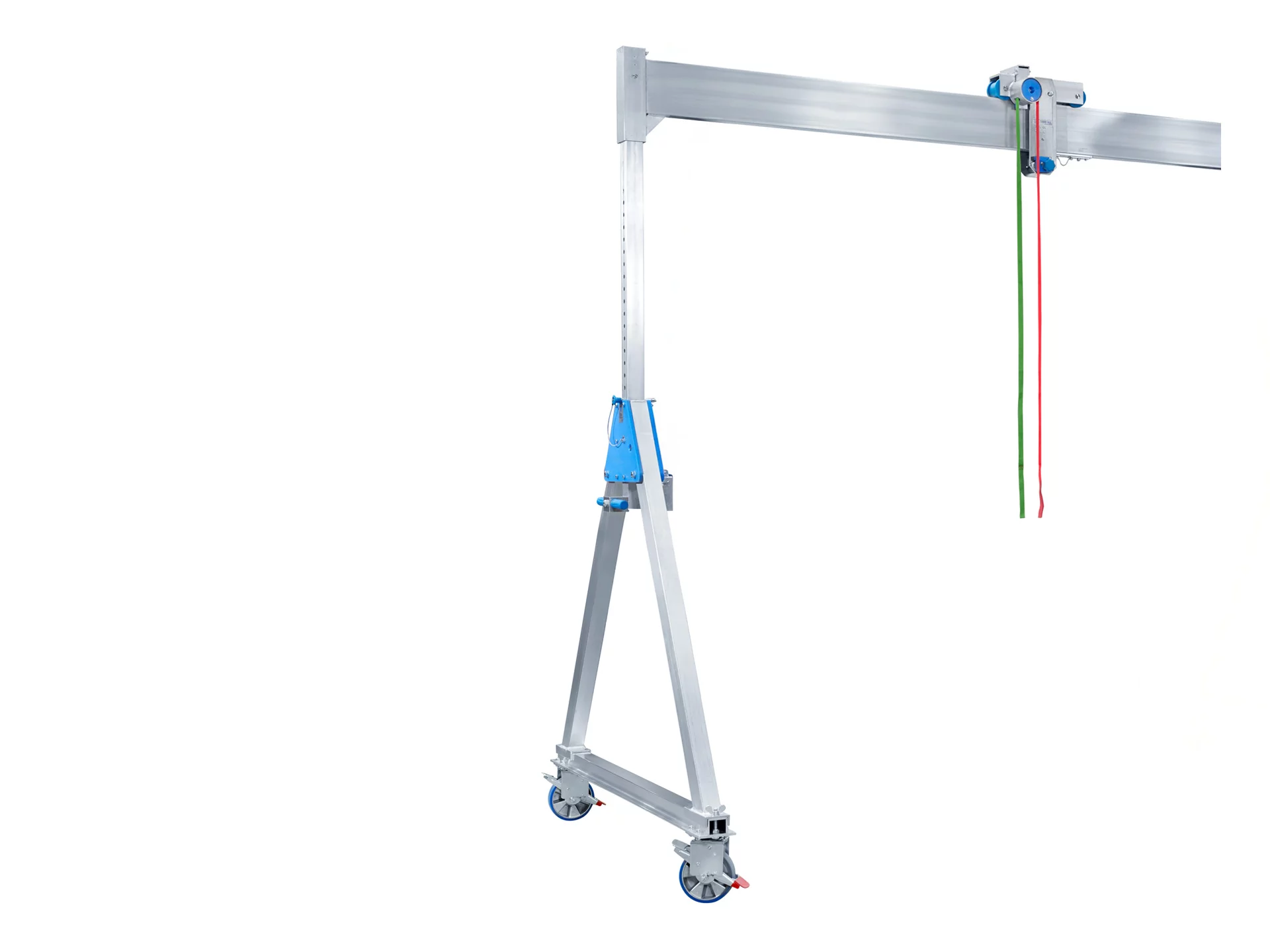

Height variant L

The ALU-PK is also available in variant L. Compared to the standard version mentioned above (variant M), the following technical data differ:


- Total height: 2880 – 4180 mm
- Suspension height: 2500 – 3800 mm

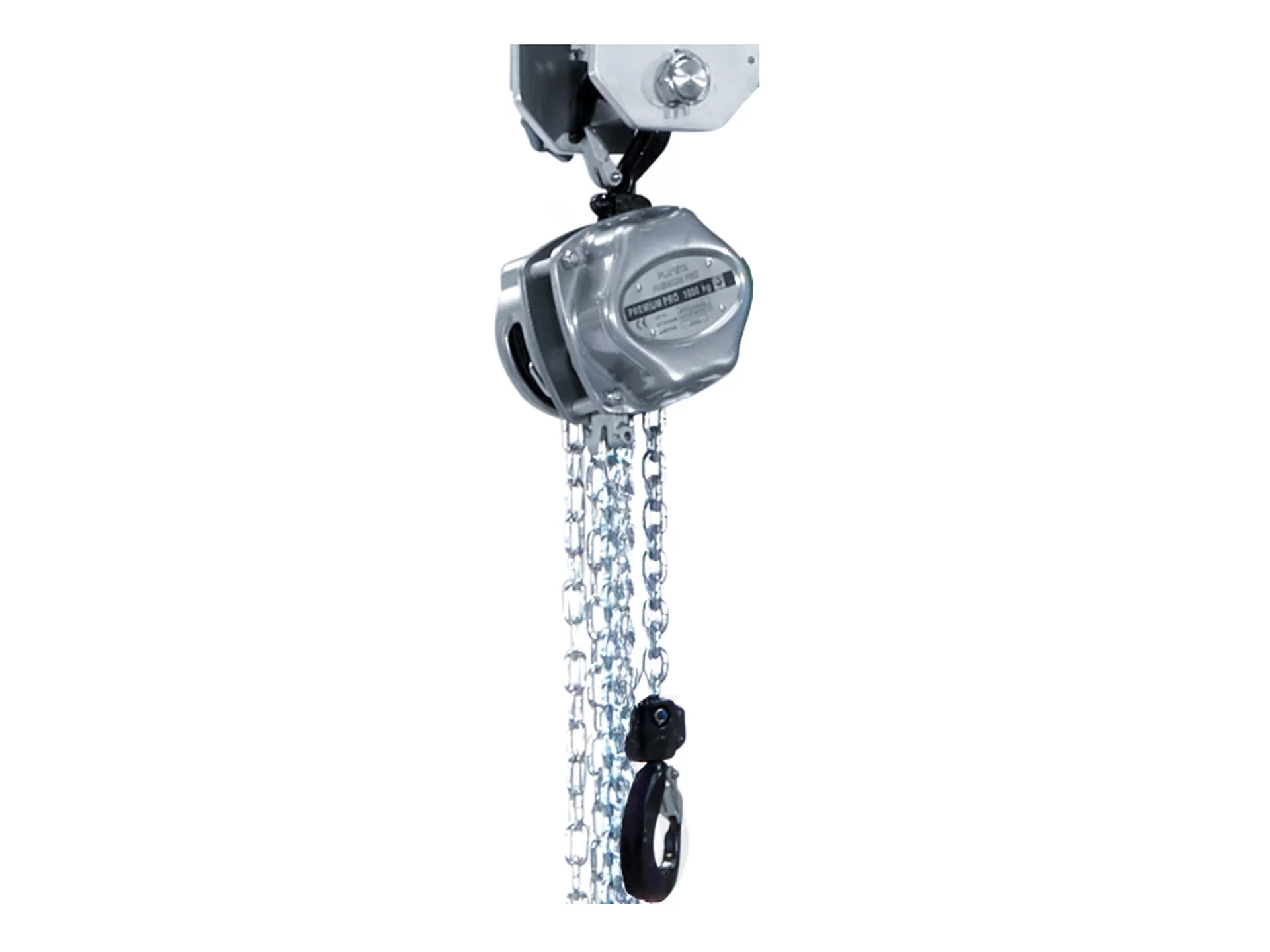

Spur gear block

Classic manual chain hoist with compact design, endless manual chain, and load hook for safe vertical lifting of loads by hand.

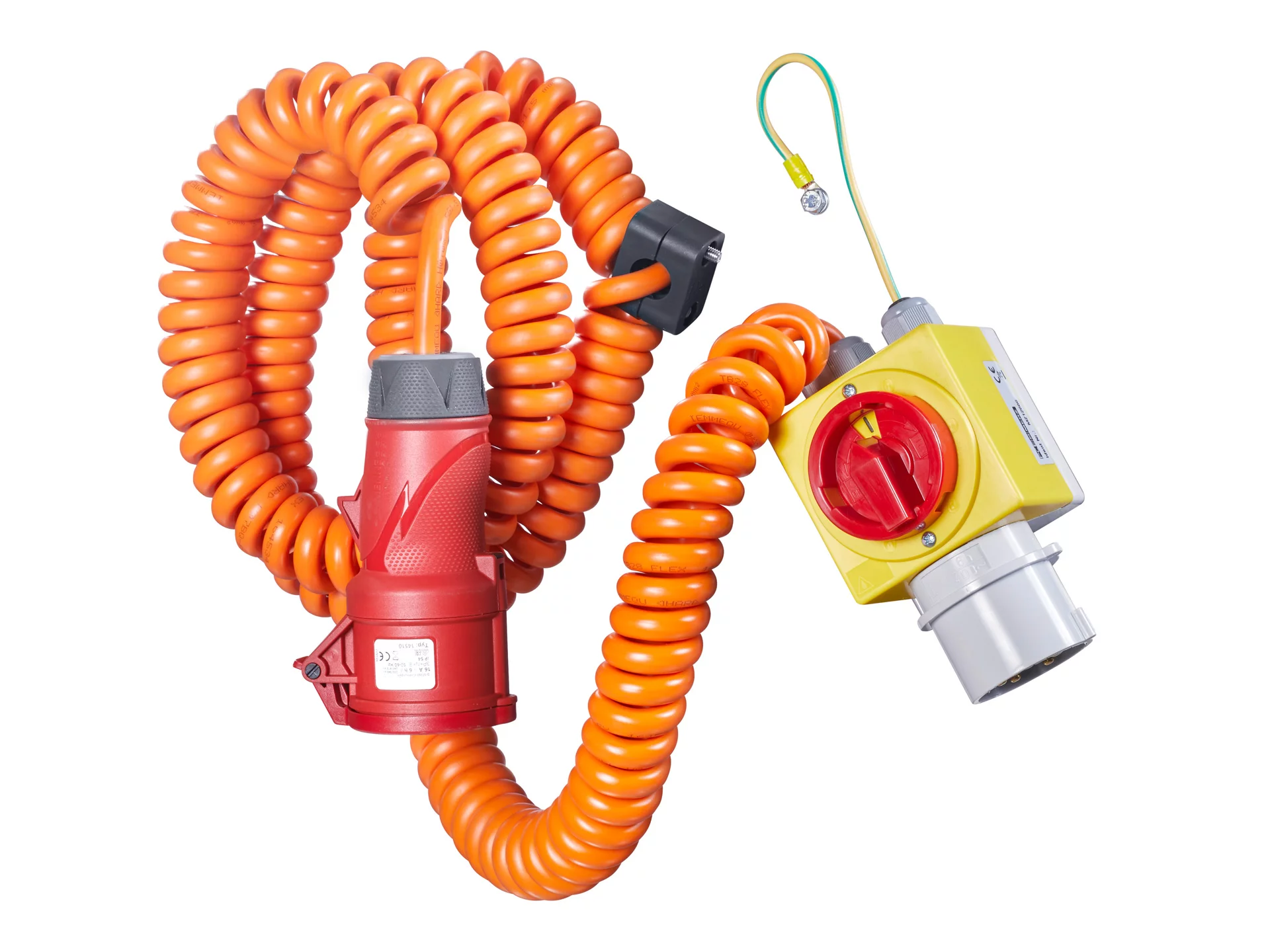

Power supply

The basic electrical equipment includes a CEE connection box with integrated disconnect switch and a spiral cable feed for safe connection of the hoist.

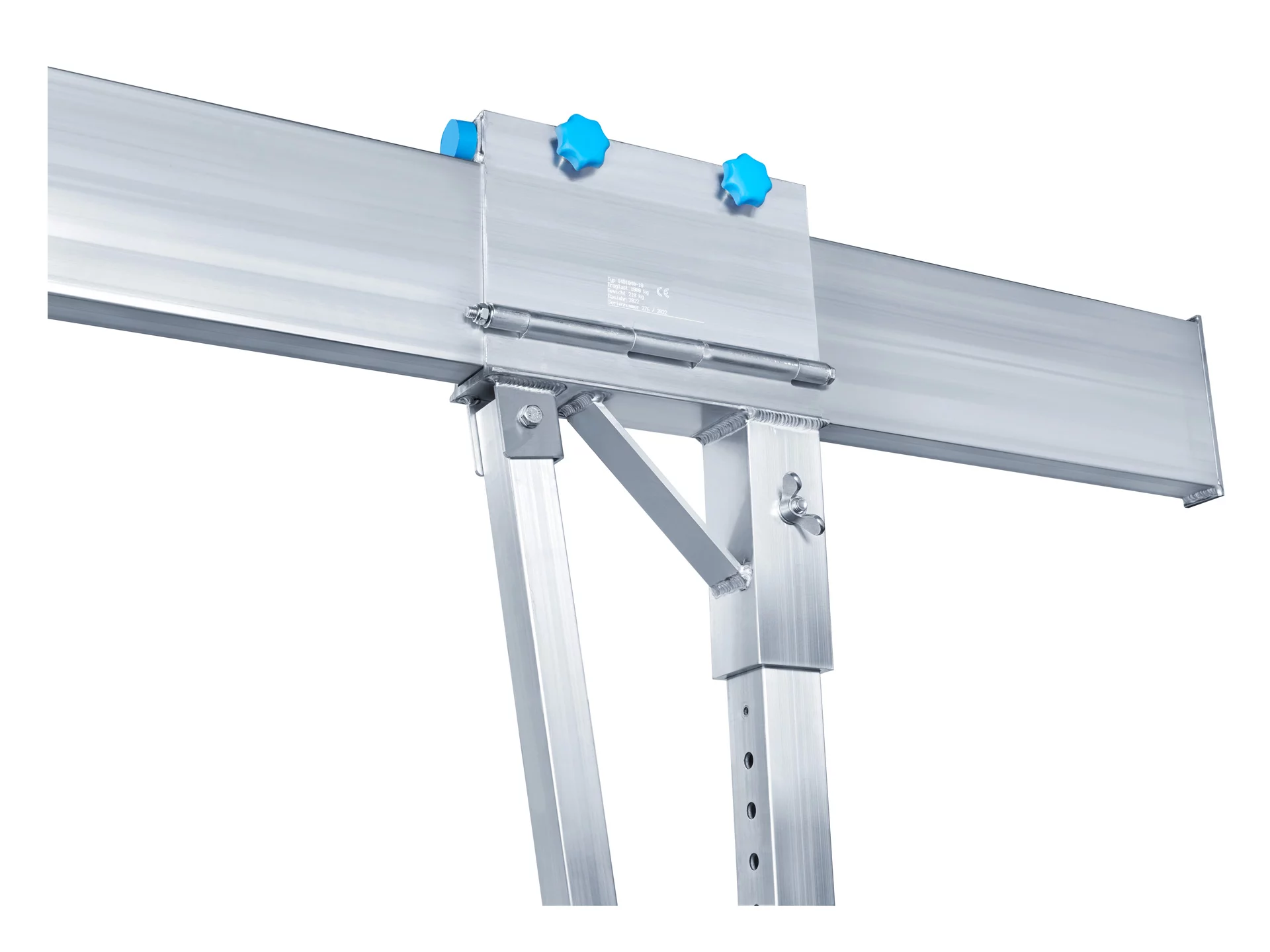

Horizontal adjuster

The horizontal adjuster allows the usable length of the aluminum gantry crane between the side frames to be adjusted continuously. This means that the travel length of the beam can be adapted perfectly to your requirements, ensuring maximum flexibility and efficiency in every application.

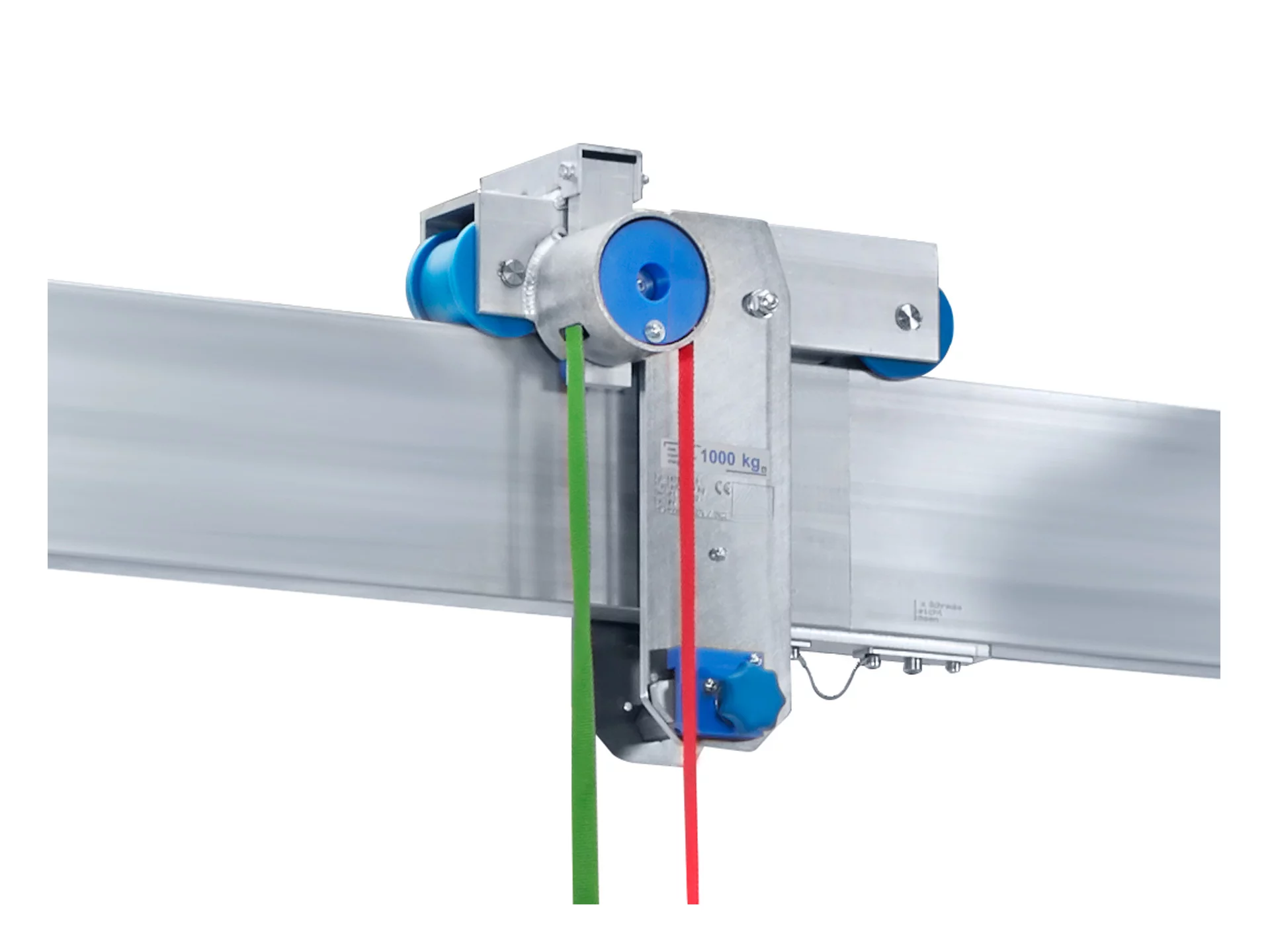

Manual push trolley

Additional manual push trolley with locking brake, freely positionable and lockable at any position. Ideal for the parallel use of a second hoist.
