Mobile slewing jib crane
Type MOB-AS
Tip Several transport options are available as accessories for quick and easy repositioning.
Product highlights
- Thanks to the counter weight integrated in the crane base, the crane is completely independent. Neither any fastening to the foundation nor any dowelling of the crane on the concrete floor is required.
- Versatile transport possibilities: Crane trolley, fork lift, or overhead crane (all optional)
- Compact design, perfectly suited for small rooms
- Large effective lifting heigh
- Column height and jib arm length can be adjusted to conditions on the spot
The versatile one in mobile design
MOB-AS is a mobile slewing jib crane with a slewing range of 270°.
Due to its compact design, the mobile slewing jib crane features a maximum lifting height and is perfectly suitable for small and narrow operating rooms. The mobile crane MOB-AS perfectly meets your requirements since column height and jib arm length can be adjusted individually.
Thanks to the counter weight integrated in the crane base, MOB-AS is completely independent. Neither any fastening to the foundation nor any doweling of the crane on the concrete floor is required.
Moreover, we offer a suitable power supply, chain hoists ELECTROLIFT® as well as various other accessories for easy repositioning of the crane.
This crane type is also available in column- and wall-mounted design.

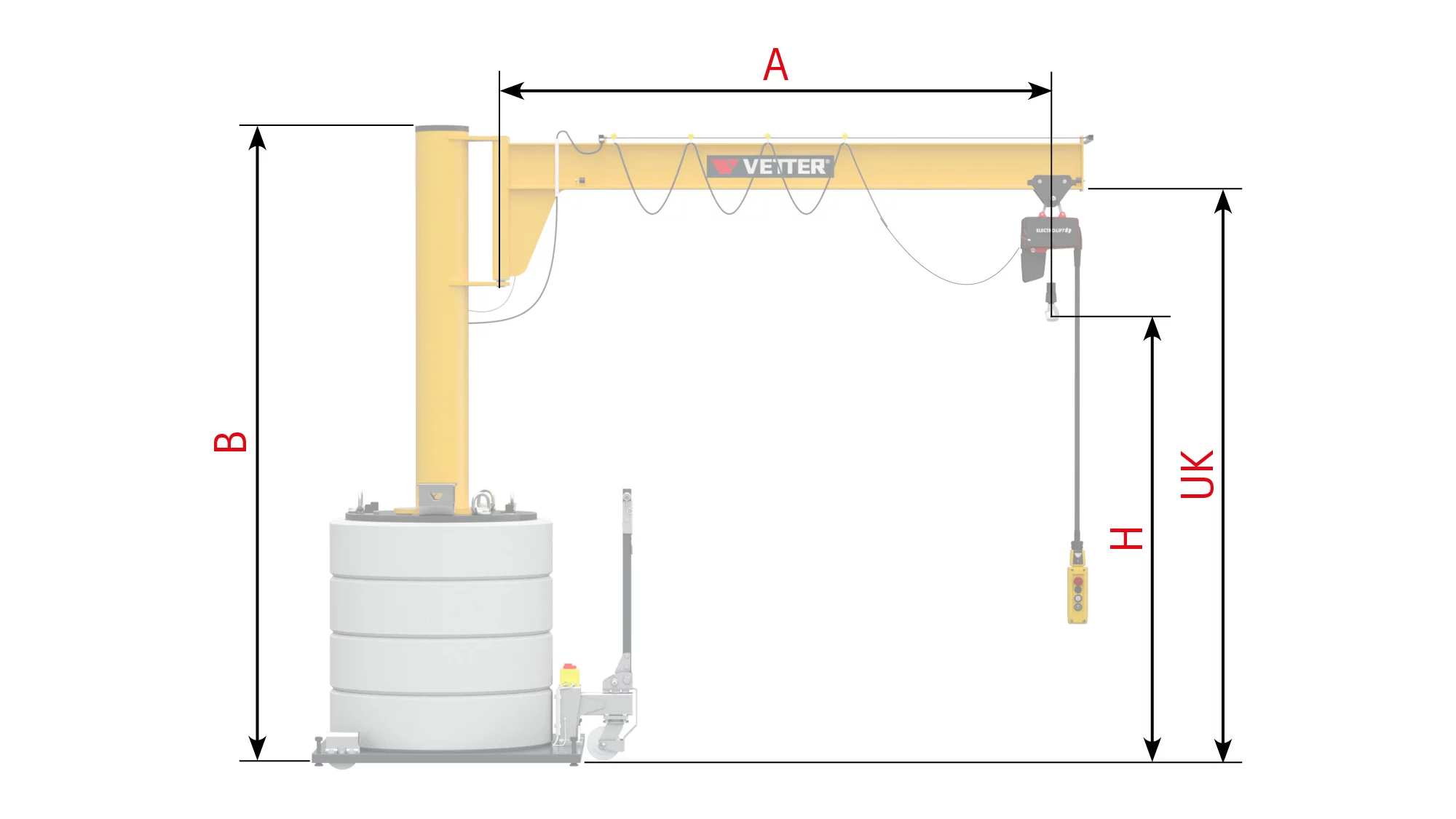

Technical data
Capacity range
| Capacity: | 125 - 500 kg |
| Outreach: | 2000 - 6000 mm |
| Jib clearance: | 1800 - 5000 mm |
| Total height: | 2100 - 5250 mm |
| Slewing range: | 270° |
| EN 13001 Hoisting class: | HC2 |
| EN 13001 Stability class: | S2 |
| Jib design: | Low-profile |
| Slewing: | By hand |
| Hoist: | Chain hoist |
| Trolley drive: | By hand / Electrical |
| Installation location: | Indoor |
Outreach [m]
Capacity [kg]
| 2 | 2.5 | 3 | 3.5 | 4 | 4.5 | 5 | 5.5 | 6 | |
|---|---|---|---|---|---|---|---|---|---|
| 125 | |||||||||
| 250 | |||||||||
| 320 | |||||||||
| 500 |
- ■ Crane base either 1175×1040 mm or 1360×1240 mm □ Crane base 1360×1240 mm
3D view
Accessories
Accessories
Paint system for indoor use
Cranes intended to be used in a hall are steel grit blasted and provided with a high-quality coating on the basis of corrosion category C2. It is suitable for minor atmospheric stress. The standard colour is daffodil yellow (RAL 1007) with a nominal layer thickness of 80 µm.
Concrete elements without coating.
Other RAL shades, corrosion categories, and layer thicknesses are available as an option.
Power lead
Round cable
Power lead by cable loop, consisting of round cable and cable supporting tube to be mounted on the jib arm. Pendant control fixed to the hoist. Suitable for an outreach up to 3-5m (Depends on the jib clearance of the jib arm).
Round cable trailing system
Favourable power supply, consisting of round cable, cable trolleys, tensioning rope and suspension arms to fix the supply to the jib arm. Pendant control fixed to the hoist. Recommended for outreachs from 3-10 m (Depends on the jib clearance of the jib arm).
Flat cable trailing system
Robust power supply, consisting of flat cable, cable trolleys, C-rail and suspension arms to fix the supply to the jib arm. Pendant control fixed to the hoist. Standard for an outreach from 10 m or in combination with electrical slewing gear.
Other
Slewing limitation
Mechanical slewing limitation, can be installed and adjusted easily and continuously.
Locking device
For locking the jib arm in several positions. Applied by lever arm / traction rope (depending on crane
type) with control lever. Also to be used as immobilizer system up to wind force 7 Beaufort (only when crane is switched off and hoist is in idle position).
Radio control system
Radio control system for safe, comfortable control of electrically driven cranes, consisting of: receiver, push button transmitter, 2 rechargable batteries, battery charging station, extended contactor control and horn.
Slewing gear AS
Electrical slewing gear with pinion and gear rim. Suitable for indoor and outdoor use (up to wind force 4).
The electrical slewing gear is only partially available, see capacity range on the register page "technical data".
Surface finish
Paint system for indoor use
Cranes intended to be used in a hall are steel grit blasted and provided with a high-quality coating on the basis of corrosion category C2. It is suitable for minor atmospheric stress. The standard colour is daffodil yellow (RAL 1007) with a nominal layer thickness of 80 µm.
Concrete elements without coating.
Other RAL shades, corrosion categories, and layer thicknesses are available as an option.
Transport
Crane trolley
The crane trolley with drawbar enables manual traversing.
Coupling
By retrofitting the coupling, Mobilus can be pulled by a forklift truck.
Fork lift pockets
Galvanised fork lift pockets are provided for lifting and displacing by means of a forklift truck.
Lifting lugs
Using the lifting lugs, an overhead crane can move Mobilus safely to its new place of use.
